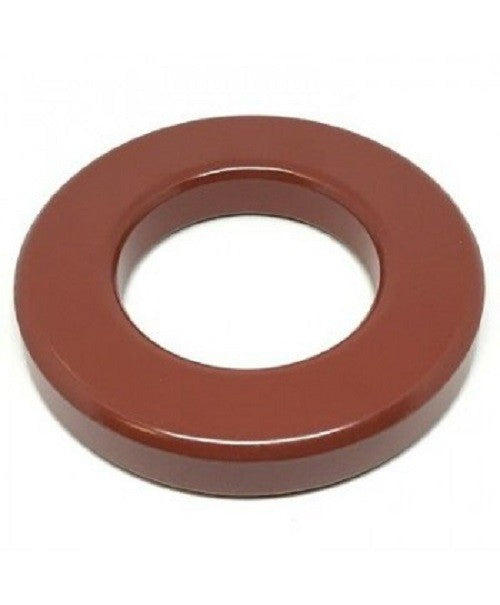

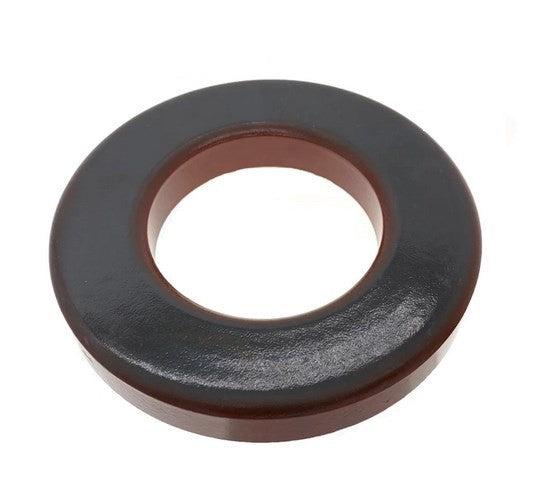

Toroide T300-2
T300-2 quantity 1 pieces Optimum Resonant Circuit Range 250 KHz - 30 M
Physical Dimensions

src=

OD = 3.0 in / 76.8 mm +/- 0.025 in
ID = 1.77 / 45.8 mm +/- 0.025 in
Ht = .550 / 14.0 mm +/- 0.03 in
 AL=11 +/- 5 %      uH=(AL*Turns2)/1000
Temperature Stability (ppm /°C) = 95  productor:micrometals
Color Code = Red / Clear
Optimum Resonant Circuit Range
for highest Q and lowest core loss
250 KHz - 30 MHz







Colore: ROSSO

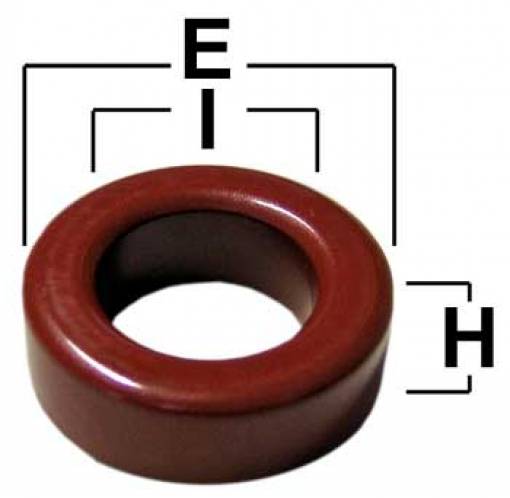

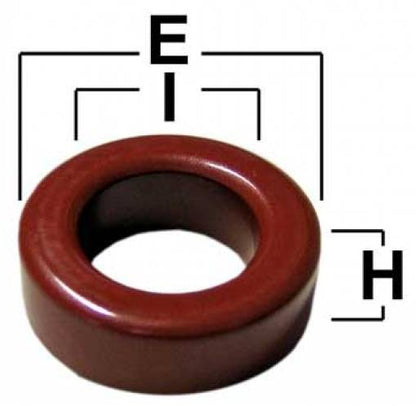

Toroide Amidon
E = 77.2 mm
I = 49 mm
H = 12.7 mm
μi = 10
AL 100 spire = 114 μH
Banda = 0.25 - 30 MHz
