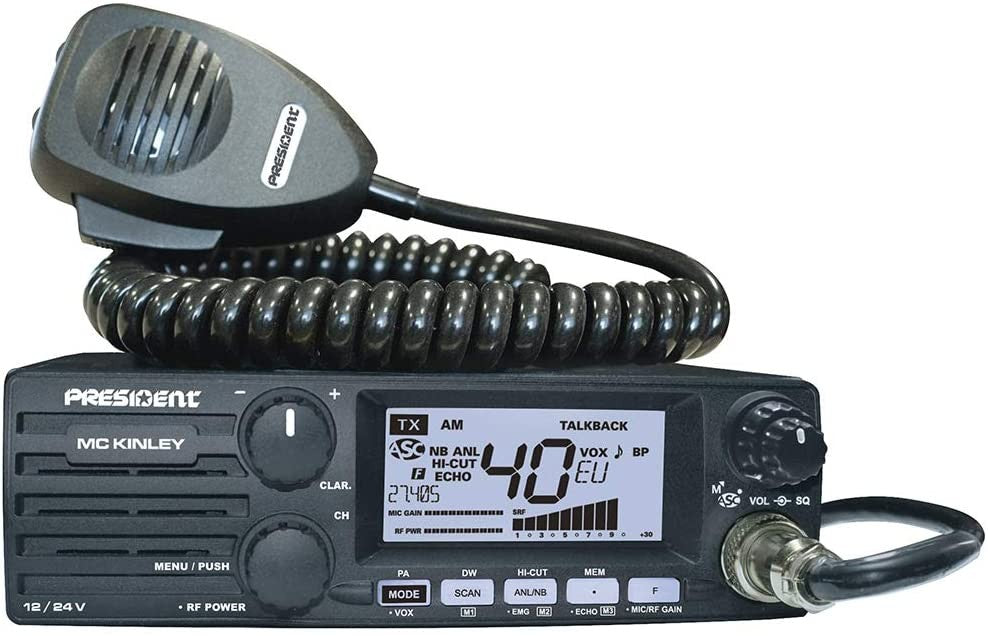

PRESIDENT McKinley - Ricetrasmettitore CB omologato all mode, 12/24 Volts Espandibile 10-11-12 metri
PRESIDENT McKinley - Ricetrasmettitore CB omologato all mode, 12/24 Volts Espandibile 10-11-12 metri
Prezzo di listino
€341,00
Prezzo di listino
Prezzo scontato
€341,00
Imposte incluse.
Spese di spedizione calcolate al check-out.
Quantità
Impossibile caricare la disponibilità di ritiro
PRESIDENT McKinley - Ricetrasmettitore CB omologato all mode, 12/24 Volts Espandibile 10-11-12 metri (Versione espansa di banda)
Apparato semiprofessionale omologato C.B. espandibile anche sui 10/12 metri (Versione espansa) con tutti i modi di emissione USB/LSB-CW-FM-AM
Ottimo per installazioni su camion visto la possibilità di essere alimentato direttamente a 24 volts oltre che a 12 volts.
Specifications
| Supply | : | 13.2 V / 24 V |
| Number of channels | : | 40 |
| AM | : | Si |
| FM | : | Si |
| SSB | : | Si |
| Channel selector | : | rotary |
| VFO mode | : | Si |
| Volume | : | Volume adjustment and ON/OFF |
| RF Power | : | Si |
| Squelch | : | Manual squelch |
| ASC | : | Si |
| Display | : | LCD multifunction |
| Frequencies display | : | Si |
| S-meter | : | Digital |
| Public address | : | Si |
| Talkback | : | Si |
| Vox | : | Si |
| Automatic SWR meter | : | Si |
| Tone | : | Si |
| Filter ANL | : | Si |
| Filter NB | : | Si |
| Filter HI-CUT | : | Si |
| Local DX key | : | Si |
| RF Gain | : | Si |
| Mike-Gain | : | Si |
| Clarifier | : | Si |
| Scan | : | Si |
| Memory | : | 3 |
| Dimmer | : | Si |
| F / Menu function key | : | Si |
| Key Beep | : | Si |
| Roger beep | : | Si |
| Dual watch | : | Si |
| SWR (Power Reading /SWR) | : | Si |
| Preset channel | : | EMG 1/2 (customizable) |
| Front loudspeaker | : | Si |
| Microphone plug | : | front (6 pins) |
| External Vox microphone jack | : | Si |
| External loudspeaker jack | : | Si |
| Size | : | 170 (W) x 150 (D) x 52 (H) |
| DIN Size | : | Si |
| Weight | : | 1.1 kg |
Technical characteristics
General
| Number of channels | : | 40 |
| Modulation modes | : | AM / FM / USB / LSB |
| Frequency ranges | : | from 26.965 MHz to 27.405 MHz |
| Antenna impedance | : | 50 ohms |
| Power supply | : | 12 V / 24 V |
| Size | : | 170 (W) x 150 (D) x 52 (H) |
| DIN Size | : | |
| Weight | : | 1.1 kg |
| Accessories supplied | : | power cord with fuse 1 microphone UP/DOWN and its hanger 1 mounting bracket with fixing screws |
Transmission
| Frequency allowance | : | +/- 300 Hz |
| Carrier power | : | 4 W AM / 4 W FM / 12 W USB / 12 W LSB |
| Transmission interference | : | inferior to 4 nW (- 54 dBm) |
| Audio response | : | 300 Hz to 3 KHz in AM/FM/USB/LSB |
| Emitted power in the adj. channel | : | inferior to 20 µW |
| Microphone sensitivity | : | 3,0 mV |
| Drain | : | 3 A (with modulation) |
| Modulated signal distortion | : | 1,8 % |
Reception
| Maxi. sensitivity at 20 dB sinad | : | 0.5 µV - 113 dBm (AM/FM) / 0.28 µV - 118 dBm (USB/LSB) |
| Frequency response | : | 300 Hz to 3 kHz in AM/FM |
| Adjacent channel selectivity | : | 60 dB |
| Maximum audio power | : | 3 W |
| Squelch sensitivity | : | minimum 0.2 µV - 120 dBm / maximum 1 mV - 47 dBm |
| Frequency image rejection rate | : | 60 dB |
| Intermediate frequency rej. rate | : | 70 dB |
| Drain | : | 400 mA nominal / 1000 mA maximum |
