Icom

Icom AH-56 - Antenna collineare 5,65-5,925 GHz, 5dBi per IC-905

Name: Icom AH-56 - Antenna collineare 5,65-5,925 GHz, 5dBi per IC-905
Brand: Icom
SKU: AH56
Price: 311.00 EUR
Availability: InStock

€311,00

In offerta Esaurito

Imposte incluse. Spese di spedizione calcolate al check-out.

Icom AH-56 Antenna collineare banda 5600 MHz

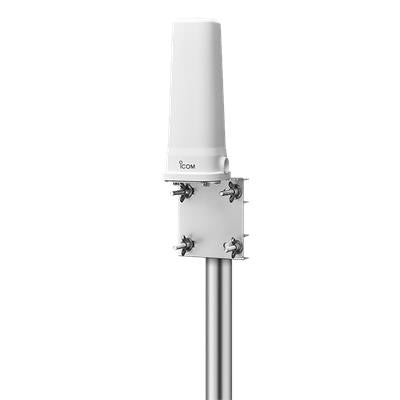

Antenna omnidirezionale polarizzata orizzontalmente. Fornito con staffa di montaggio e kit di morsetti a cavallotto.

Descriptions

·Collinear antenna for IC-905

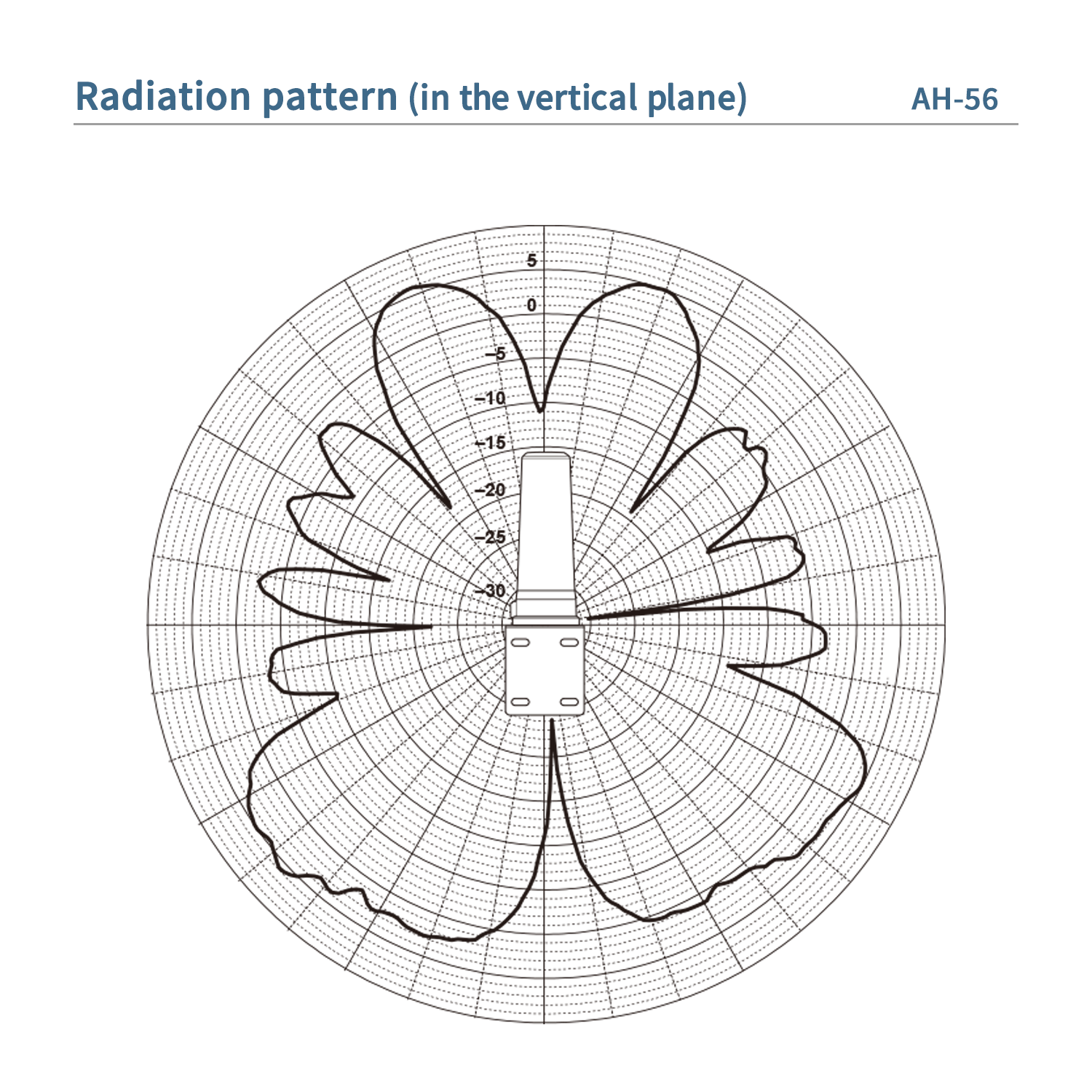

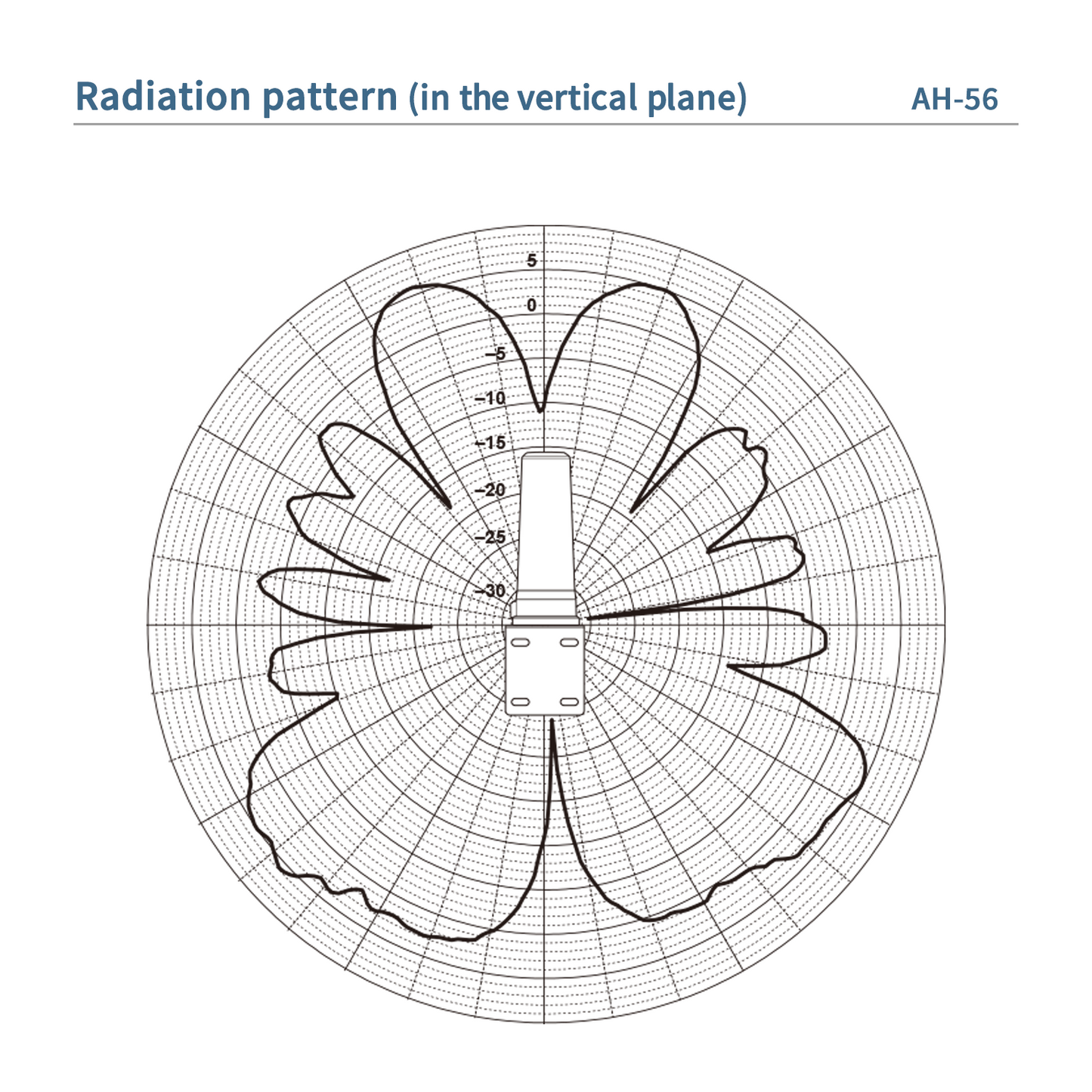

·Horizontal plane omnidirectional antenna

Specifications

Frequency range	5650 MHz ~ 5925 MHz
Gain	5 dBi (typical)
VSWR	1.5 or less
Operating Temperature Range	-25? ~ 55?, -13°F ~ 131°F

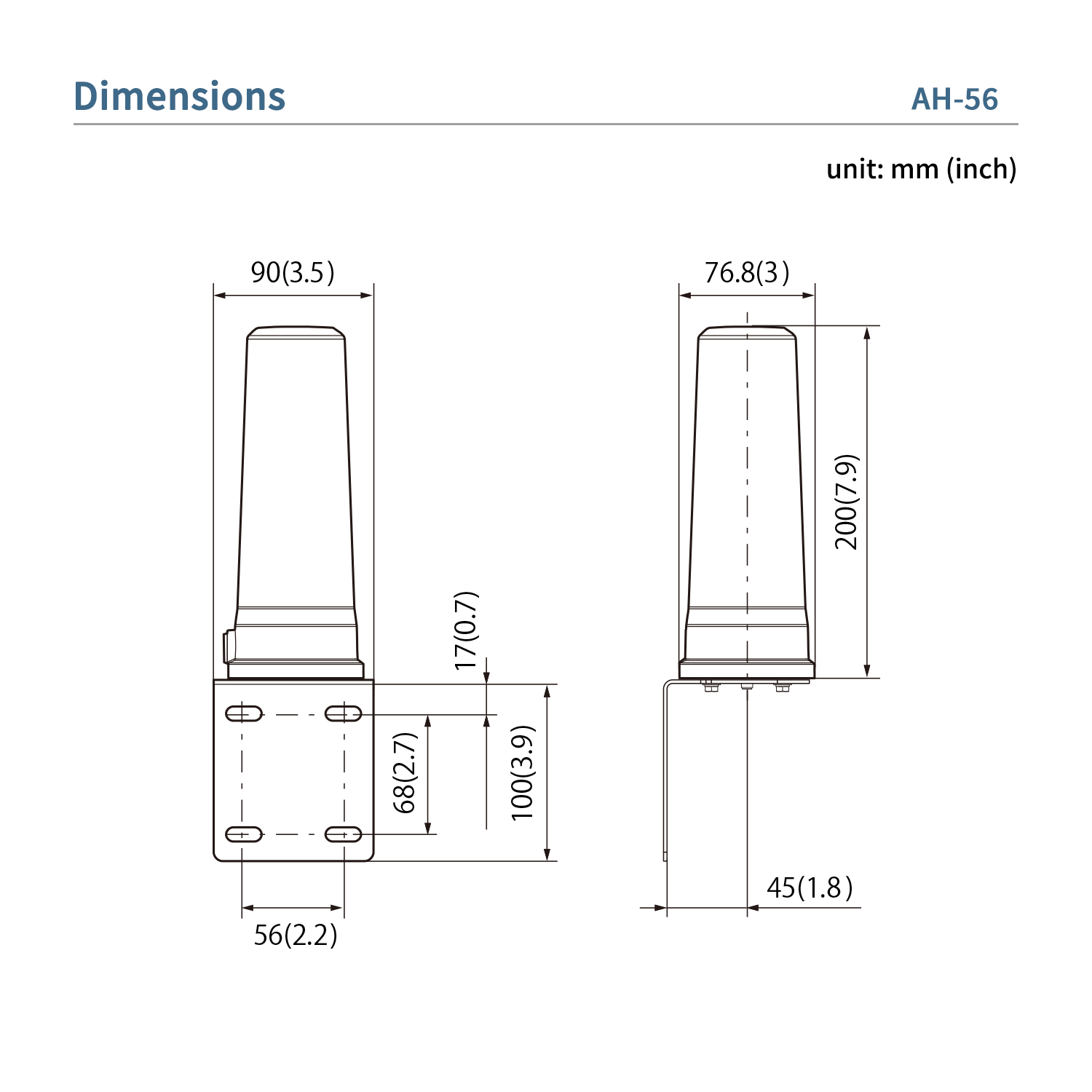

Dimensions (W x H x D)	76.8 x 200 x 76.8 mm, 3.0 x 7.9 x 3.0 inch (Bracket not included)
Weight (approx.)	228 g, 8 oz (Supplied accessories not included)
Input/Output Connector	SMA-R
IP Rating	IP67
