Icom AH-109PB - Antenna parabolica 10-10,5 GHz, diametro 45 cm, 31 dBi per IC-905 e CX-10G

Icom AH-109PB - Antenna parabolica 10-10,5 GHz, diametro 45 cm, 31 dBi per IC-905 e CX-10G

€1.659,00
€0,00 €1.659,00
In offerta Esaurito
Imposte incluse. Spese di spedizione calcolate al check-out.

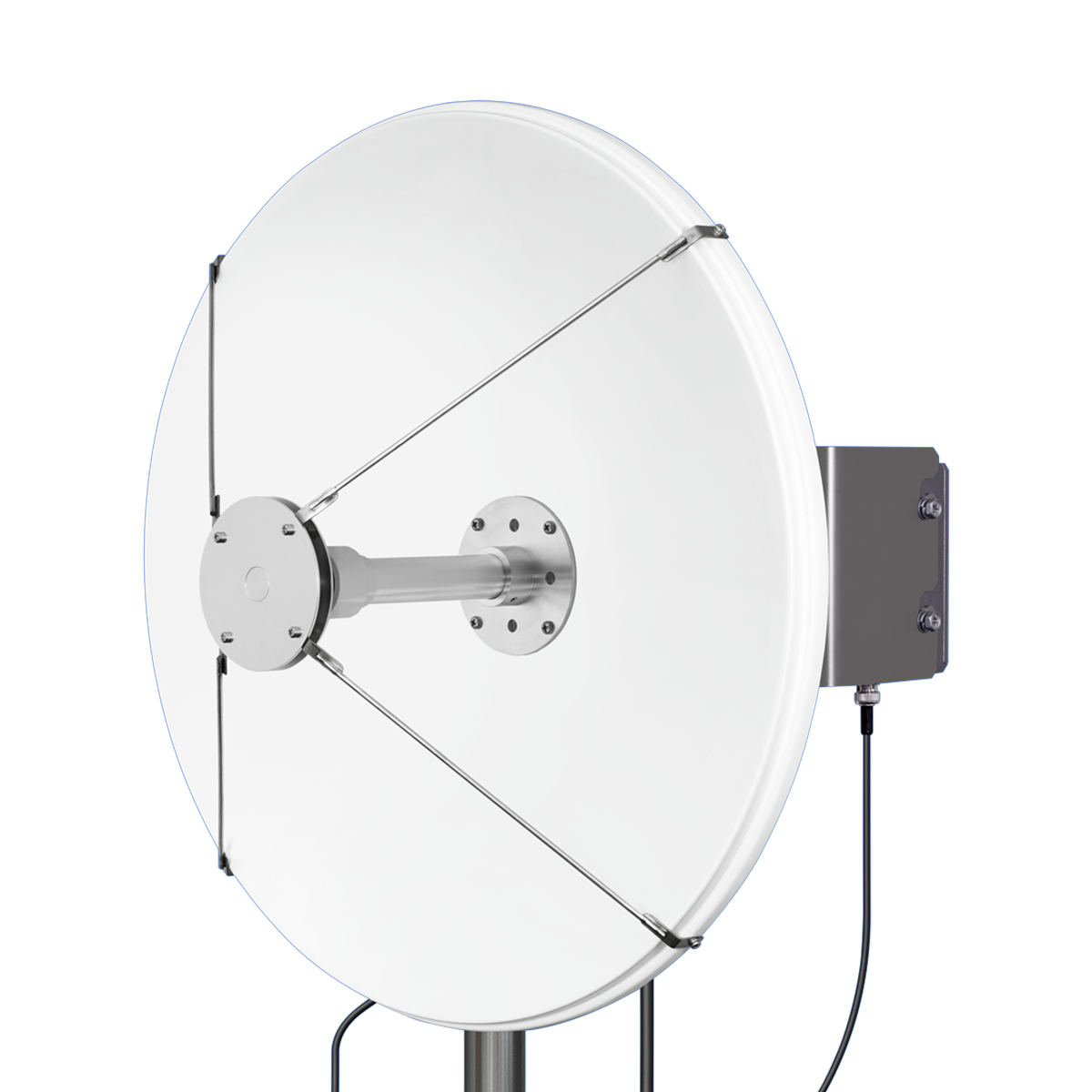

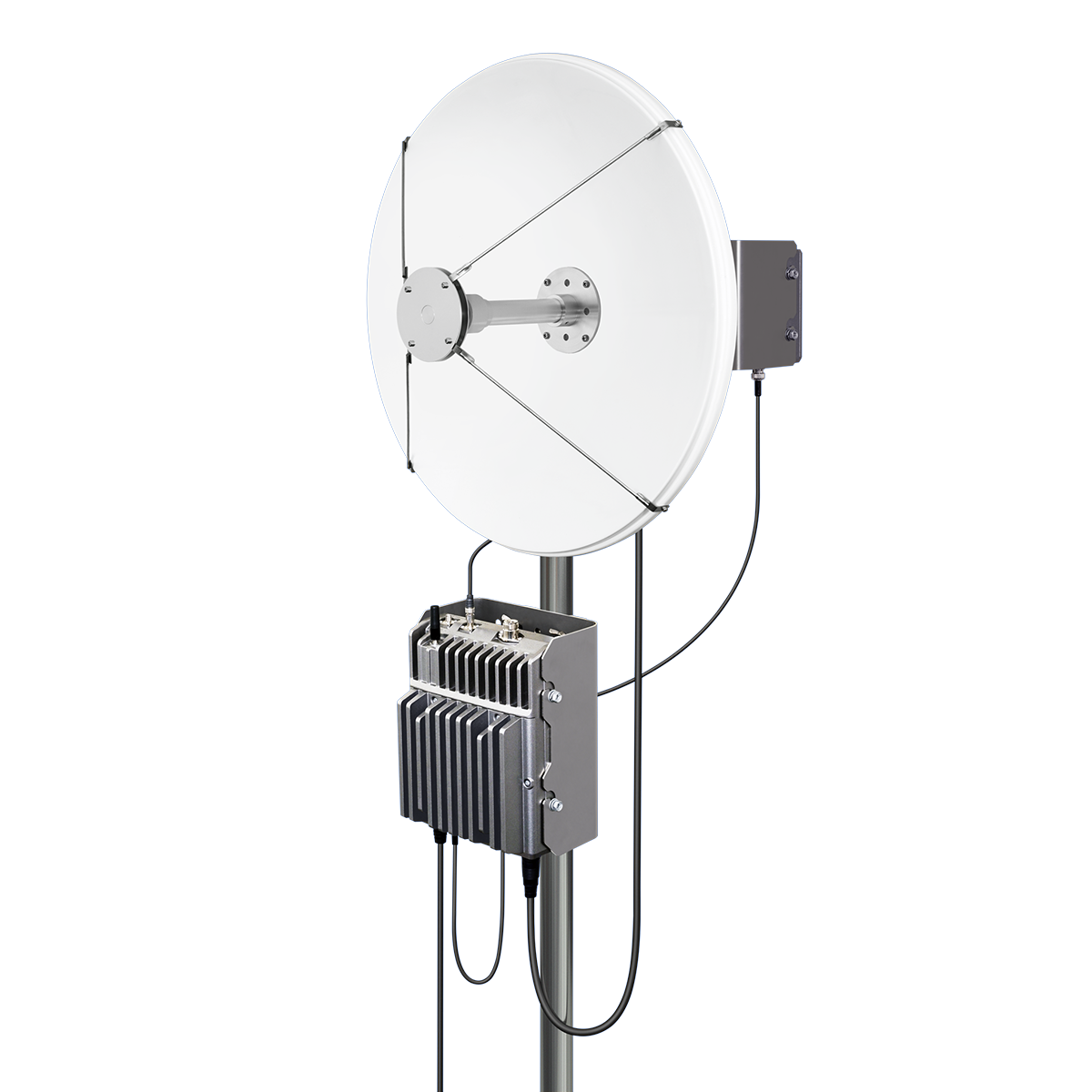

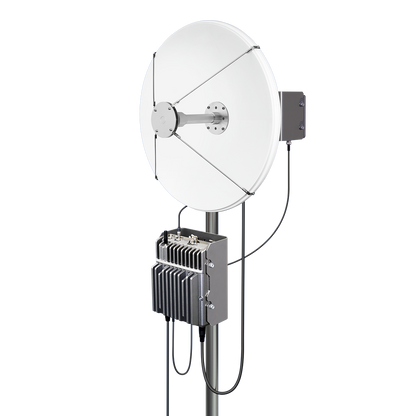

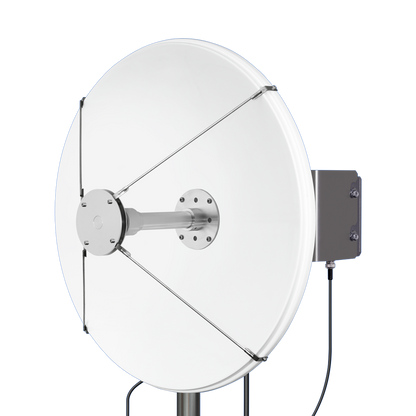

Icom AH-109PB Antenna parabolica, diametro 45 cm., 31 dBi, banda 10.0 GHz ~ 10.5 GHz


Descriptions

·Parabolic antenna for IC-905 and CX-10G

·Splash plate feed antenna

Specifications

Frequency range 10.0 GHz ~ 10.5 GHz
Gain 31 dBi typical
Maximum input power 10 W

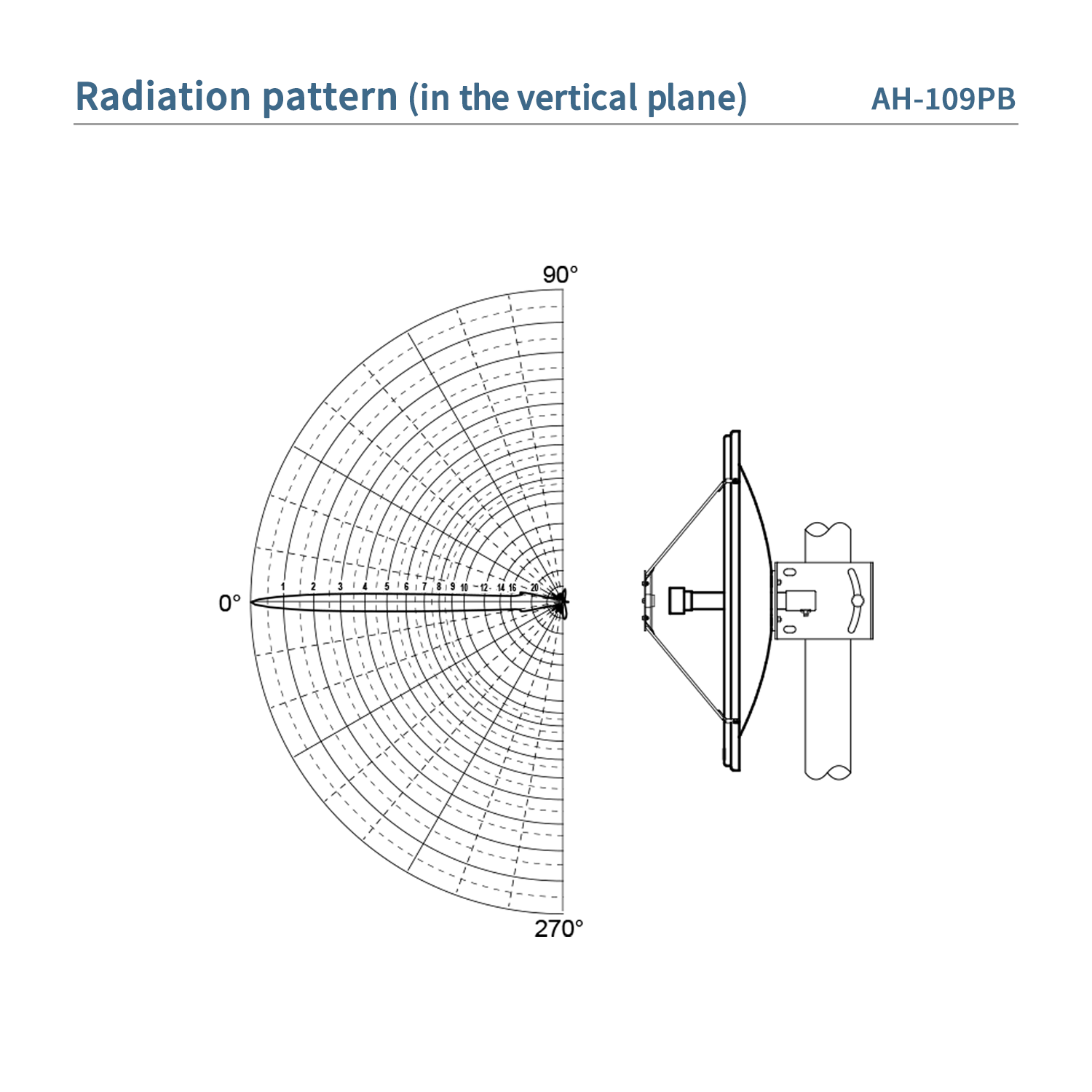

Half power beam width (approx.) 4 degrees in the E plane
Polarization Vertical
Impedance 50 O typical
VSWR 2.0 or less
Connector SMA-J
Wind velocity survival rating
(Pole diameter 60.5 mm (2.4 in)) 		50 m/s (111.8 mph)
Attaching pole diameter 32 ~ 60.5 mm, 1.3 ~ 2.4 in
Weight (approx.) 2.0 kg, 4.4 lb (with the bracket)

Supplied Accessories

·Semi-rigid cable

·Pole clamps and hex head bolts
