Daiwa CN-501VN - Wattmetro VHF/UHF 140/525 MHz 200 watts letture Pep

Daiwa CN-501VN - Wattmetro VHF/UHF 140/525 MHz 200 watts letture Pep

€110,00
€0,00 €110,00
In offerta Esaurito
Imposte incluse. Spese di spedizione calcolate al check-out.

  height=

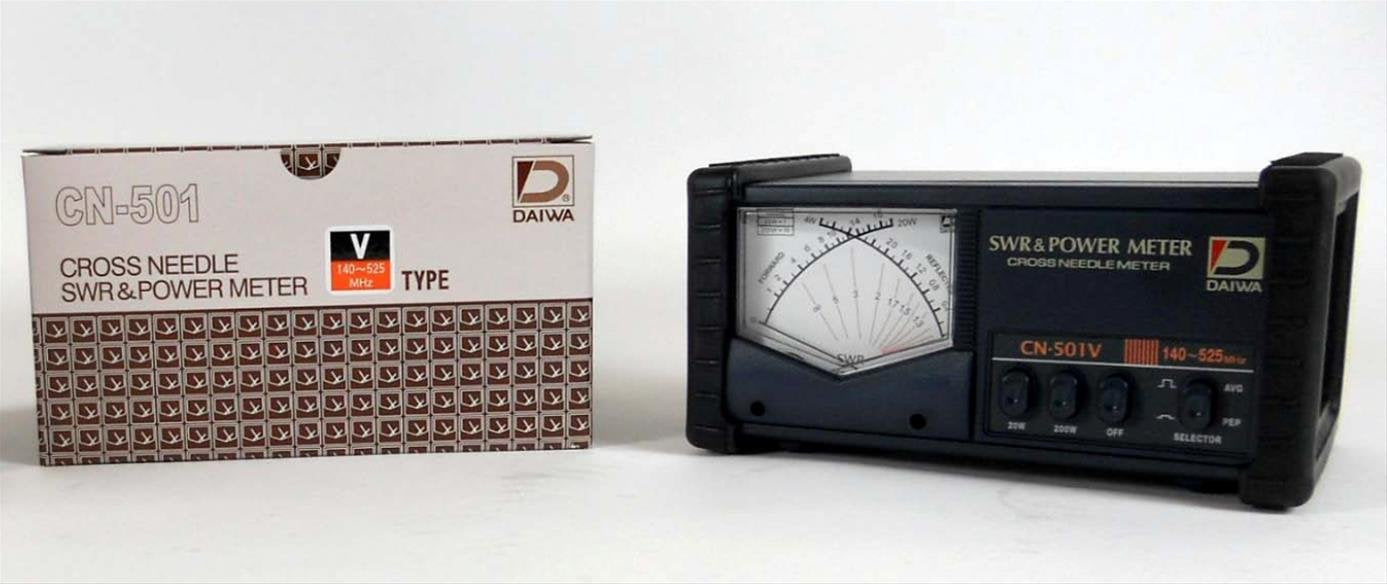

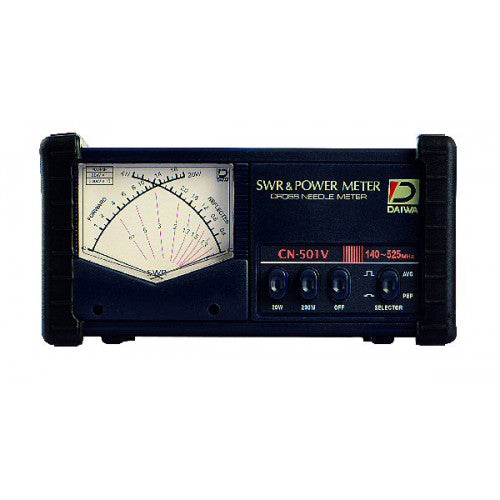

DAIWA CN-501VN

WATTMETRO VHF/UHF 140/525 MHz MAX 200 W POSSIBILITA' DELLA LETTURA PeP



src=

Descrizione:

SPECIFICHE TECNICHE

Frequenza da 140 a 525 MHz

Scale di Potenza 20 / 200 W

Potenza Massima 200 Watt

Tolleranza ±10% (OF FULL SCALE) detection sensitivity 4 Watt MIN

Impedenza Input/Output 50 O

Connettori Input/Output tipo N

Dimensioni 155(W)×80(H)×100(D) mm.

Peso 670 gr.





Tipo CN-501H CN-501H2 CN-501VN CN-901HP CN-901HP-3 CN-901VN CN-801S2
Gamma di frequenze 1.8 - 150 1.8 - 150 140 - 525 1.8 - 200 1.8 - 200 140 - 525 900 - 2500 MHz
Range di potenza 15/150/1500* 20/200/2000* 20/200 20/200/2000* 30/300/3000* 20/200 0.2/2/20 Watt
Min. potenza per misurazioni di SWR 4 4 4 5 5 5 0.2 Watt
Connettori PL PL N PL PL N N
dimensioni dello strumento 62x40 62x40 62x40 93x67 93x67 93x67 93x67 mm
Dimensioni del contenitore 155x80x100 155x80x100 155x80x100 155x109x120 155x109x120 155x109x120 155x109x120 mm
Tolleranza ±10% of full range ±10% of full range ±10% of full range ±10% of full range ±10% of full range ±10% of full range ±10% of full range
Ordine No. CN-501H CN-501H2 CN-501VN CN-901HP CN-901HP-3 CN-901VN CN-801S2




SWR and Power indicators are installed in one meter unit.One scale will be indicated at the crossing point of the 2 needles. This unique feature makes it possible to read all of Forward Power, Reflected Power and SWR at the same time.
