Daiwa CN-501H2 - Wattmetro HF/VHF 1.8/150 MHz 2000 Watts

Daiwa CN-501H2 - Wattmetro HF/VHF 1.8/150 MHz 2000 Watts

€147,50
€0,00 €147,50
In offerta Esaurito
Imposte incluse. Spese di spedizione calcolate al check-out.

  height=

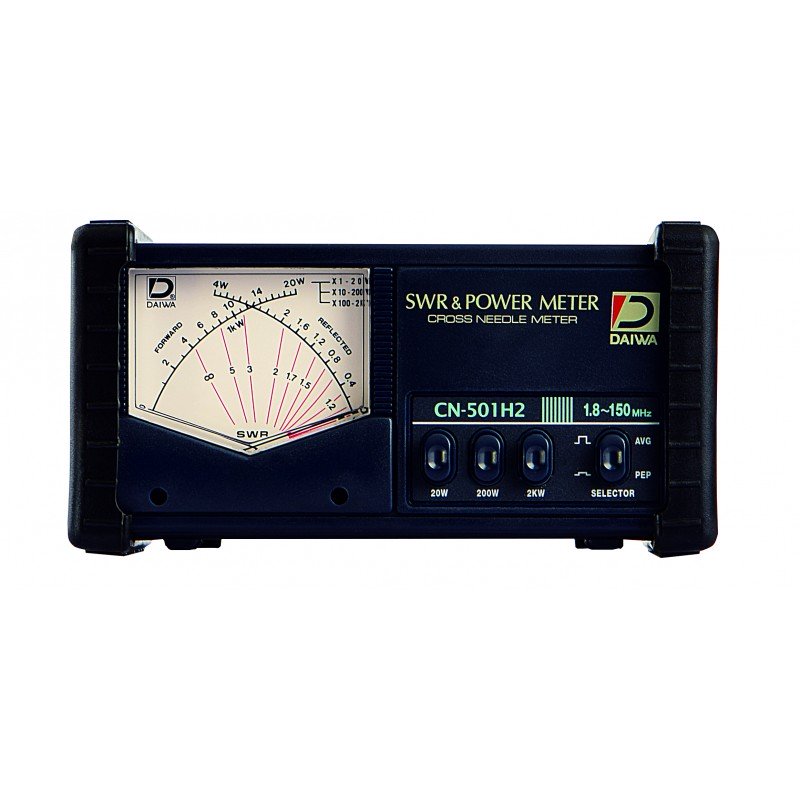

DAIWA CN-501H2

WATTMETRO HF/UHF 1.8/150 MHz MAX 2000 W

src=





Frequency ?1.8 ?150 MHz
Power range (Forward) 20 / 200 / 2000 W
Power rating? 2 KW (1.8 ? 60 Mhz)
1 KW (144 Mhz)
Tolerance ±10? (OF FULL SCALE)
??? measurement 1?1 ? 1?8
??? detection sensitivity 4 ? MIN
Input/Output impedance ?50 O
Input/Output connectors ? (SO-239)
Dimensions ?155(W) × 80(H) × 100(D) mm.
Weight 670 gr.



Tipo CN-501H CN-501H2 CN-501VN CN-901HP CN-901HP-3 CN-901VN CN-801S2
Gamma di frequenze 1.8 - 150 1.8 - 150 140 - 525 1.8 - 200 1.8 - 200 140 - 525 900 - 2500 MHz
Range di potenza 15/150/1500* 20/200/2000* 20/200 20/200/2000* 30/300/3000* 20/200 0.2/2/20 Watt
Min. potenza per misurazioni di SWR 4 4 4 5 5 5 0.2 Watt
Connettori PL PL N PL PL N N
dimensioni dello strumento 62x40 62x40 62x40 93x67 93x67 93x67 93x67 mm
Dimensioni del contenitore 155x80x100 155x80x100 155x80x100 155x109x120 155x109x120 155x109x120 155x109x120 mm
Tolleranza ±10% of full range ±10% of full range ±10% of full range ±10% of full range ±10% of full range ±10% of full range ±10% of full range
Ordine No. CN-501H CN-501H2 CN-501VN CN-901HP CN-901HP-3 CN-901VN CN-801S2




SWR and Power indicators are installed in one meter unit.One scale will be indicated at the crossing point of the 2 needles. This unique feature makes it possible to read all of Forward Power, Reflected Power and SWR at the same time.

TECHNICAL SPECIFICATIONS

frequency range

140-525 MHz

power range (forward)

20/200 watts

power rating

200 watts

accuracy

+-10% full scale

SWR detection sensitivity

4 watts, minimum

impedance

50 ohms

connectors

UHF Female

size

3" H x 5" W x 4" D
