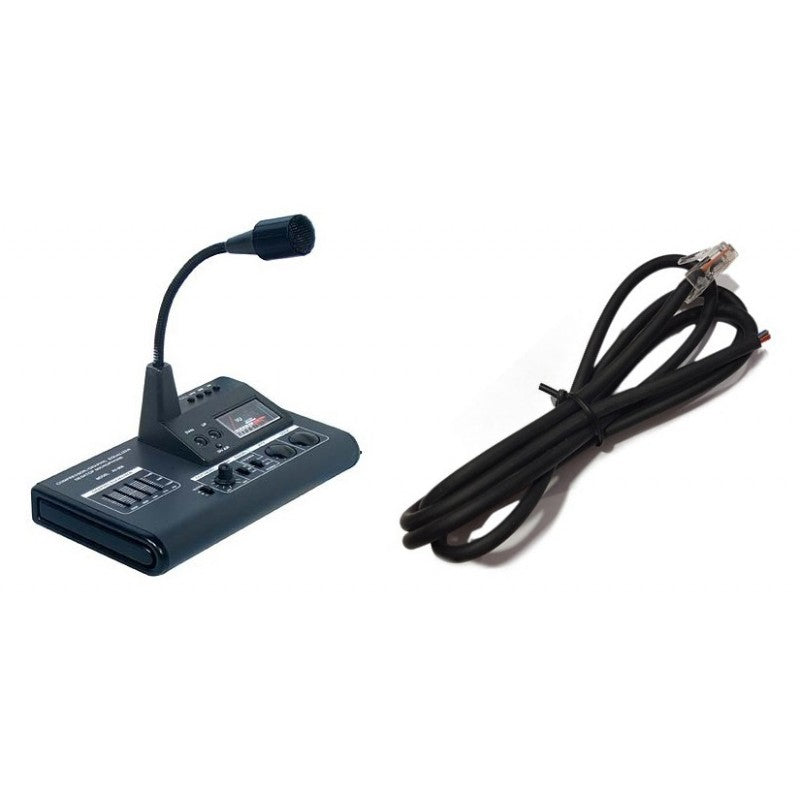

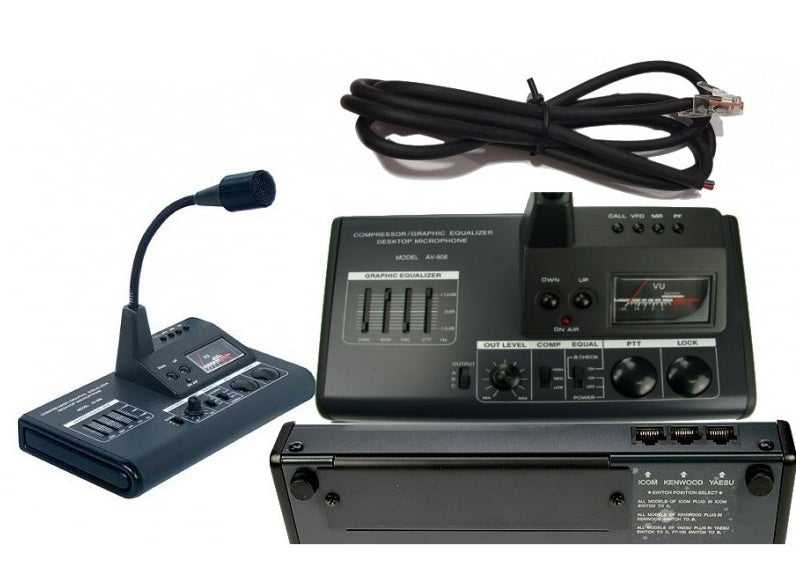

AV-908 (DM-6000) Microfono da base con compressore ed equalizzatore

AV-908 (o anche DM-6000)

Microfono da Base Capsula Ceramica ad Alta Sensibilità con Compressore ed Amplificatore per Apparati Amatoriali

Microphone: High Sensitivity Ceramic MIC. Element 1 pc

Compressor Level: High: 45 dB, Med: 30 dB, Low: 10 dB

S/N Ratio (Graphic Equalizer Part): 80dB

Distortion Factor (Graphic Equalizer Part): 0.05% (at flat)

Graphic Equalizer: 4 elements (270,540,1000,2000Hz)+12dB range

Output Voltage: COMP: 0- 30mV  (RMS)

Matching Output Impedance: 500 ohms – 100K ohm

Power Voltage:  DC 6~9 V

Current Consumption: At Equalizer “OFF” Receiving: 3.5mA, Transmitting: 4.5mA

At Equalizer “ON” Receiving: 10mA, Transmitting: 11mA

Alarm Sound: Approx. 4.5KHz Intermittent Tone

External Size: 227 X 130 X 320 mm

Weight: 1000gr

As standard, it is supplied with cable compatible with Kenwood equipment (Av-24K).
